Ambient Vaporizer

Our vaporiser production starts with aluminium extrusion, effectively reducing costs while ensuring sufficient vaporisation volume. Please feel free to contact us.

Tip: Choose 1080p playback for an enhanced viewing experience.

The ambient vaporizer enables the cryogenic liquid medium (such as LNG at -162℃) to exchange heat with the surrounding air through finned aluminum alloy heat exchange tubes. When a cryogenic liquid medium flows into the heat exchange tubes, it lowers the temperature of the air outside the tubes, forming natural air convection (or relying on wind force). The continuously replenished “warmer” air constantly undergoes heat exchange with the low-temperature liquid inside the finned tubes, eventually heating and vaporizing the liquid medium into gas at the required temperature.

No energy consumption, no pollution, green environmental protection;Easy to install and maintain;
Special aluminum heat exchange, high efficiency, lightweight design, long service life;
Large diameter (φ200) special aluminum heat exchange tube; defrosting speed is breakneck; effective inner fin structure; improves the heat transfer effect of heat exchange tube;
The “bridge” type connection element is beautiful and generous, and the stress caused by thermal expansion and cold contraction of each part is eliminated during working;
Optimized process design; the pressure drop is minimized; there is no drift current phenomenon, and the flow rate is controlled within the safe range;
Special anti-oxidation treatment on the surface of the heat exchange tube; Sufficient design margin;
Advanced high-pressure tube composite technology so that the pressure tube and the heat exchange tube are in 100% full contact to ensure heat transfer efficiency;
All vaporizers are cleaned and manufactured in full accordance with oxygen service standards for safer use;
It can be designed and manufactured according to electronic standards;
Design conditions: ambient temperature -10℃, relative temperature 70%, continuous use of 8-12 hours for gasification;
Applicable media: LO₂, LN₂_,LAr, LNG, LCO₂_,LC₂H₄_,LPG, etc;
Working pressure: 8-40.0MPa;
Single flow: 50-16000Nm /h; Combined type can be used for a larger flow rate.

Technical Specification of Ambient Vaporizer

Catalog of Wingo Cryo Tanks

Drawing of 40Nm³/h Ambient Vaporizer

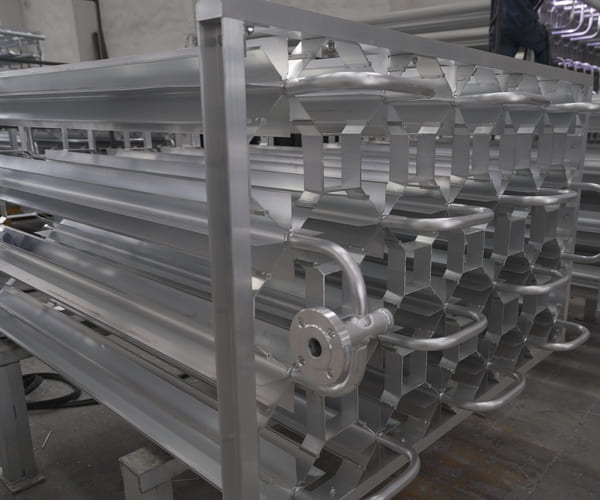

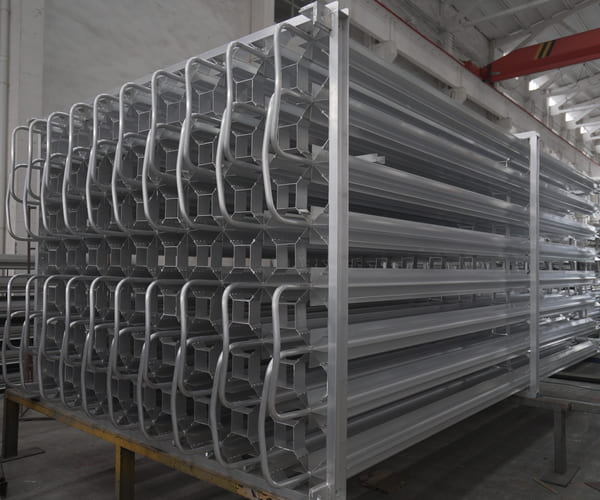

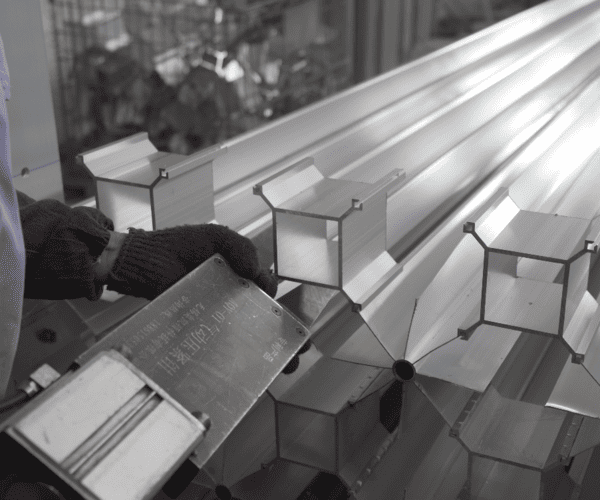

Raw Material

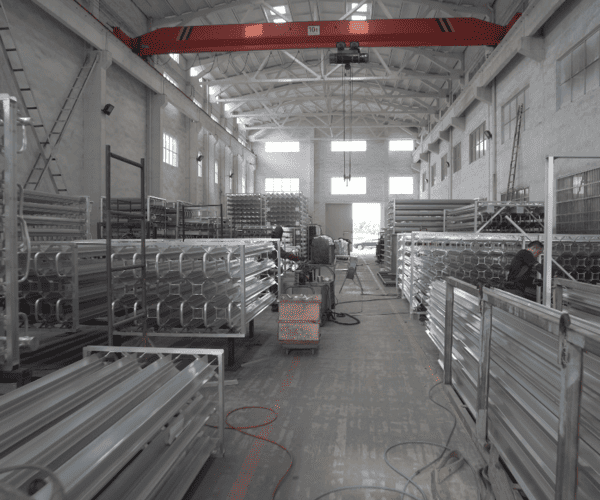

Our self-owned workshop produces vaporizers from aluminum raw materials, offering a price advantage.

Vaporization Volume

Professional engineers design a sufficient blade area to ensure adequate vaporization volume.

Shipment

We offer one-stop services including design, production, delivery, and application for certificates of origin.

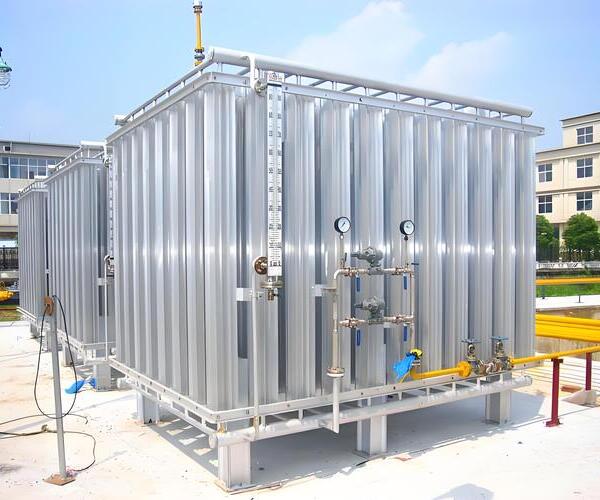

Projects

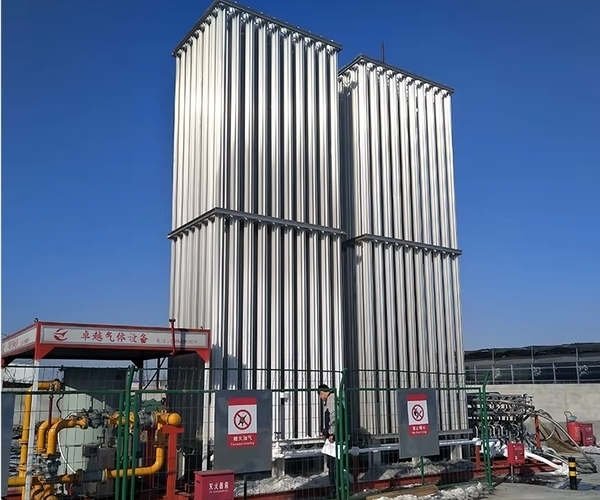

Ambient Vaporizer Using On Cryogenic Tanks Projects 3

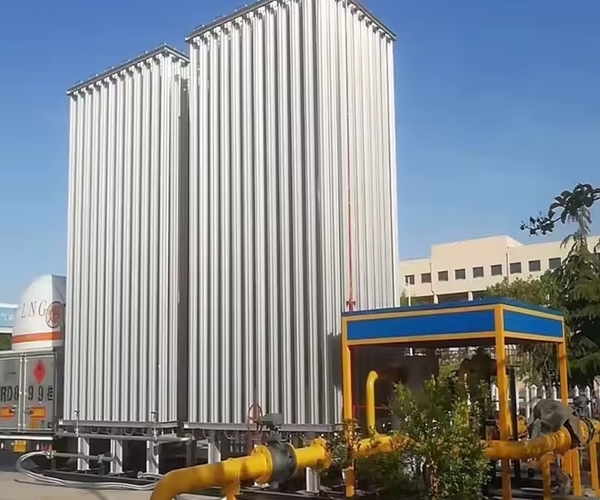

Ambient Vaporizer Using On Cryogenic Tanks Projects 4

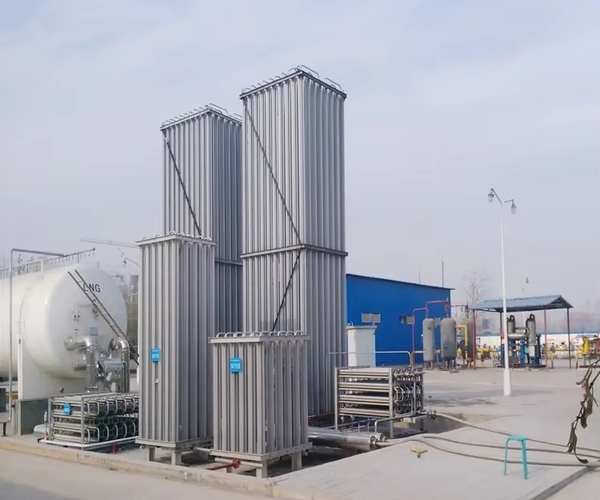

Ambient Vaporizer Using On Cryogenic Tanks Projects 5

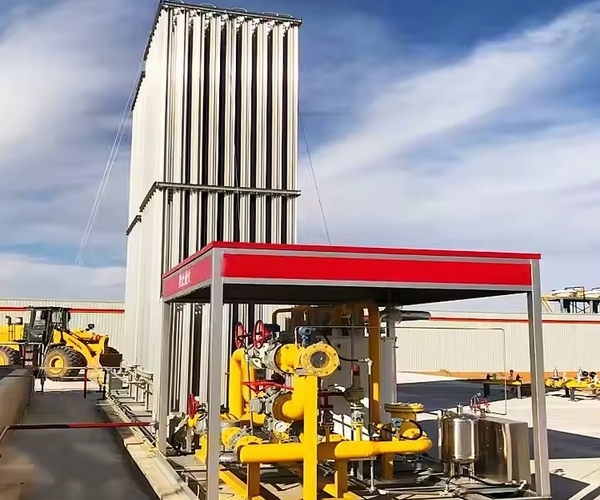

Ambient Vaporizer Using On Cryogenic Tanks Projects 6

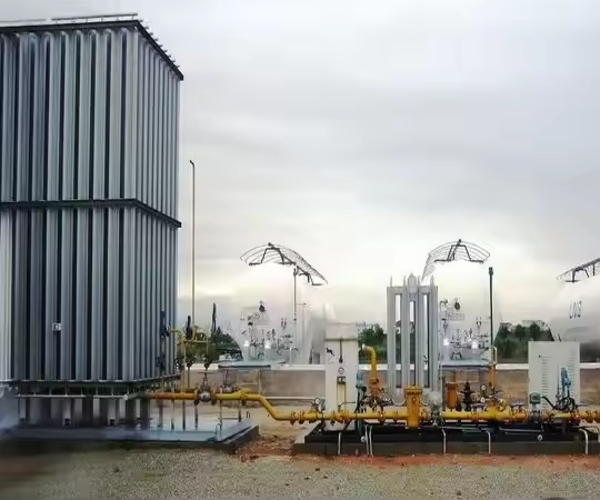

Ambient Vaporizer Using On Cryogenic Tanks Projects 7

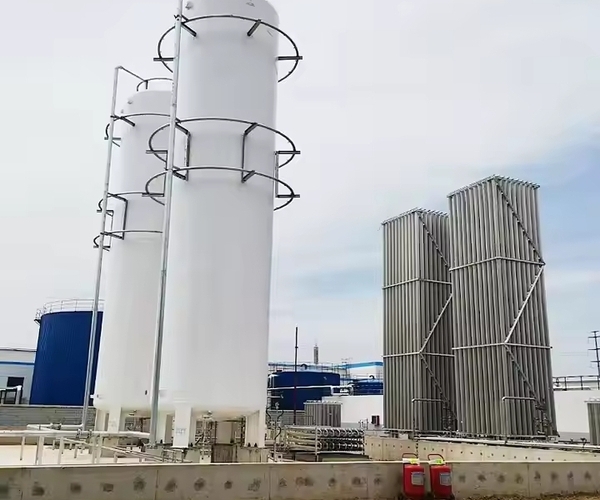

Ambient Vaporizer Using On Cryogenic Tanks Projects 8

What is the warranty terms and design life of your crogenic tanks?

The warranty term is one year. The design life is twenty years.
We provide free technical guidance during the service life and the best price for the repair of spare parts.

How can we ship the cryogenic tanks？Could you help us?

Depending on the size of the cryogenic tank, flat rack containers or open-top containers will be used.

We have professional loading workers, drivers, and freight forwarders who can provide one-stop service. Click to learn more.

Can we get the certificates of original? Are they free?

Yes, we can apply for and provide free-of-charge certificates of origin issued by China Customs or the China Council for the Promotion of International Trade, including CO, FORM A/GSP, FORM E, FORM F, etc. Please click to learn more.

What price terms do you support?

We support EXW, FOB, CIF, etc. Let us talk about your needs and make the most suitable price terms.

What payment methods do you support?

We support T/T, sight L/C, cash, West Union, Monygram, etc. Please click to learn more.
