ISO Tanks
We can produce 20-foot, 40-foot, and 45-foot ISO tank containers. Please do not hesitate to contact us.
Tip: Choose 1080p playback for an enhanced viewing experience.

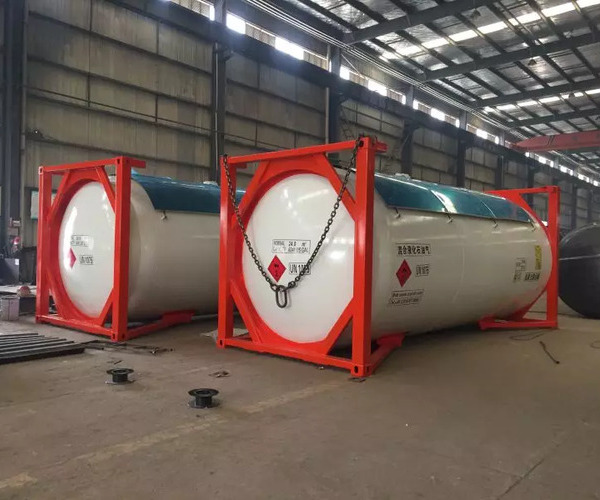

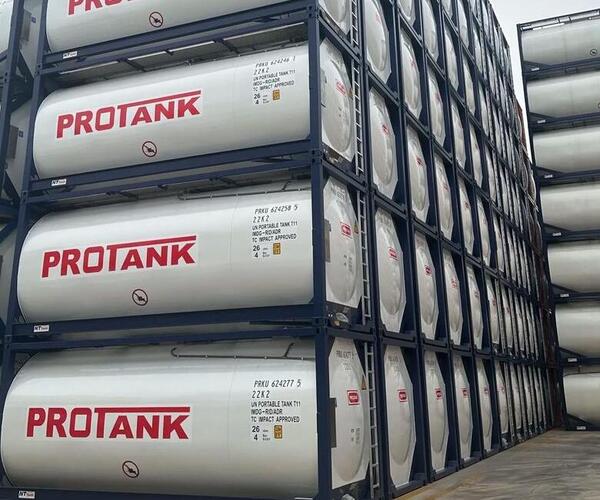

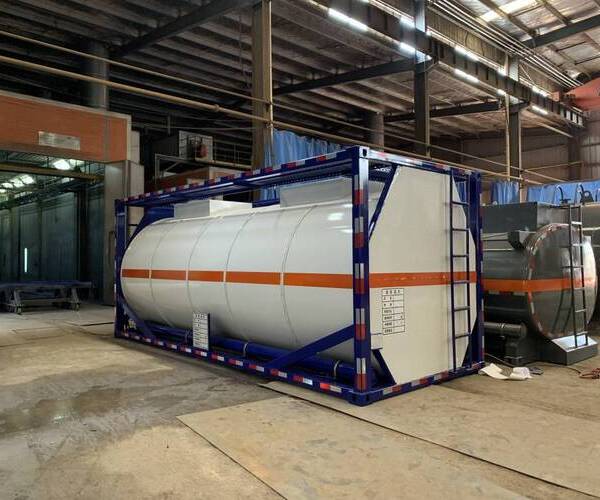

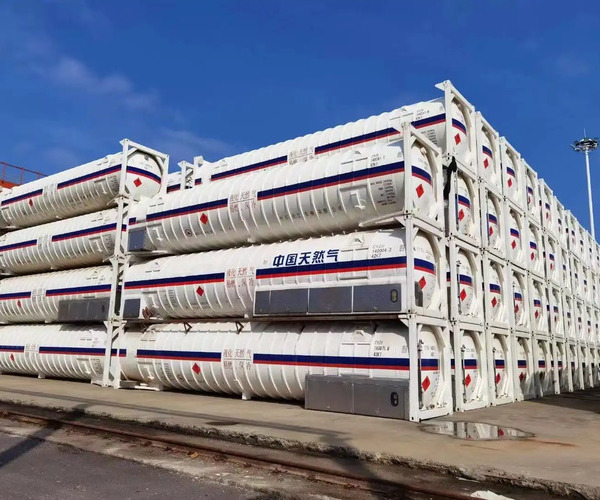

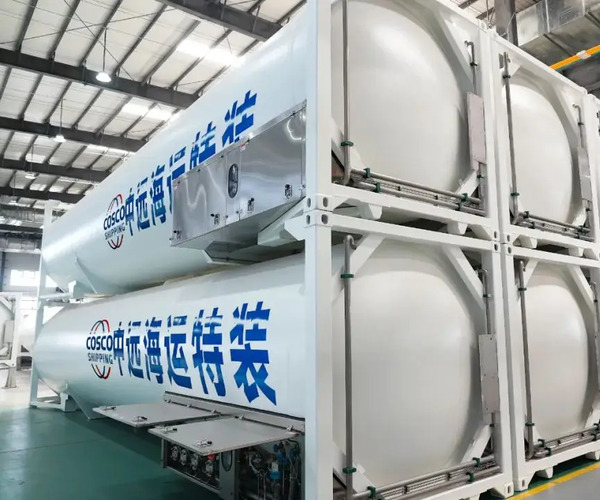

ISO tank containers are cryogenic gas storage and transportation units compliant with international ISO standards. They feature exceptional strength, superior sealing, and outstanding thermal insulation properties. Utilizing a double-wall vacuum-insulated design, they ensure the safe transportation of liquid gas at ultra-low temperatures down to -162°C. These containers are ideal for multimodal transport, seamlessly integrating with maritime, road, and rail logistics networks.
We specialize in professionally manufacturing 20ft, 40ft, and 45ft ISO Tank Containers. Beyond LNG, our ISO tanks are also engineered to safely store and transport other cryogenic liquids, including LOX, LN, LAr, and LC₂H₂.
- The 20ft, 40ft, and 45ft ISO tank containers adopt dual-standard design (Chinese and American standards). They have special equipment manufacturing supervision and inspection certificates, as well as China Classification Society and BV Classification Society certificates.

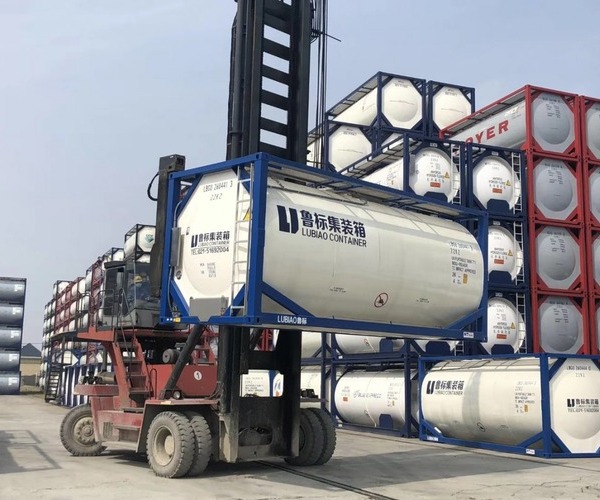

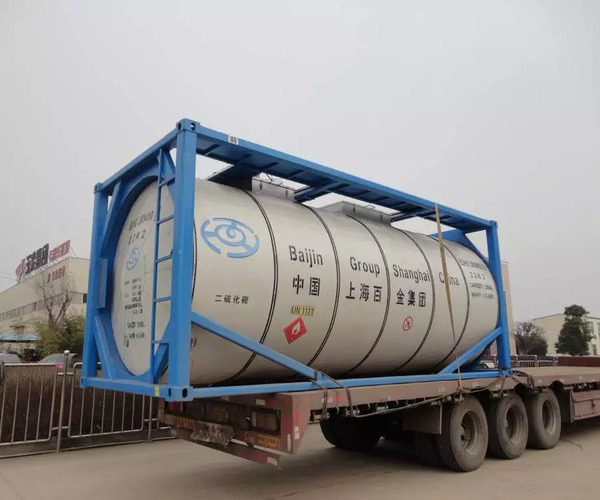

- The ISO tank containers can meet the needs of road, sea, railway, and other combined transport, achieving “door-to-door” transport.They can be used as both a shipping tool and a temporary storage tank for liquid materials.
- They can be loaded and unloaded under complete seal with safety and reliability. Large loading capacity, moderate cost, and long-term use can significantly reduce the cost of shipping with excellent economy.
Technical Specification of ISO Tank Container
| Model | Design Code | Filling Medium | Geometric Volume(m³) | Filling Rate(%) | Working Pressure (Mpa) | Container Weight(kg) | Rated Weight(kg) | Adiabatic System | Overall Dimension(mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZBGX4508-01, 40Ft | GB/ASME | LNG | 45.62 | 90/81 | 0.8 | 11700 | 30480 | High vacuum multi-layer insulation | 12192*2438*2591 |
| ZBGX4508-02, 40Ft | LNG/LC2H4 | 45.62 | 90/81 | 0.8 | 11700 | 36000 | 12192*2438*2591 | ||
| ZBGX5508-01, 45Ft | LNG/LC2H4 | 50.53 | 90/81 | 0.8 | 12840 | 36000 | 15716*2438*2591 | ||

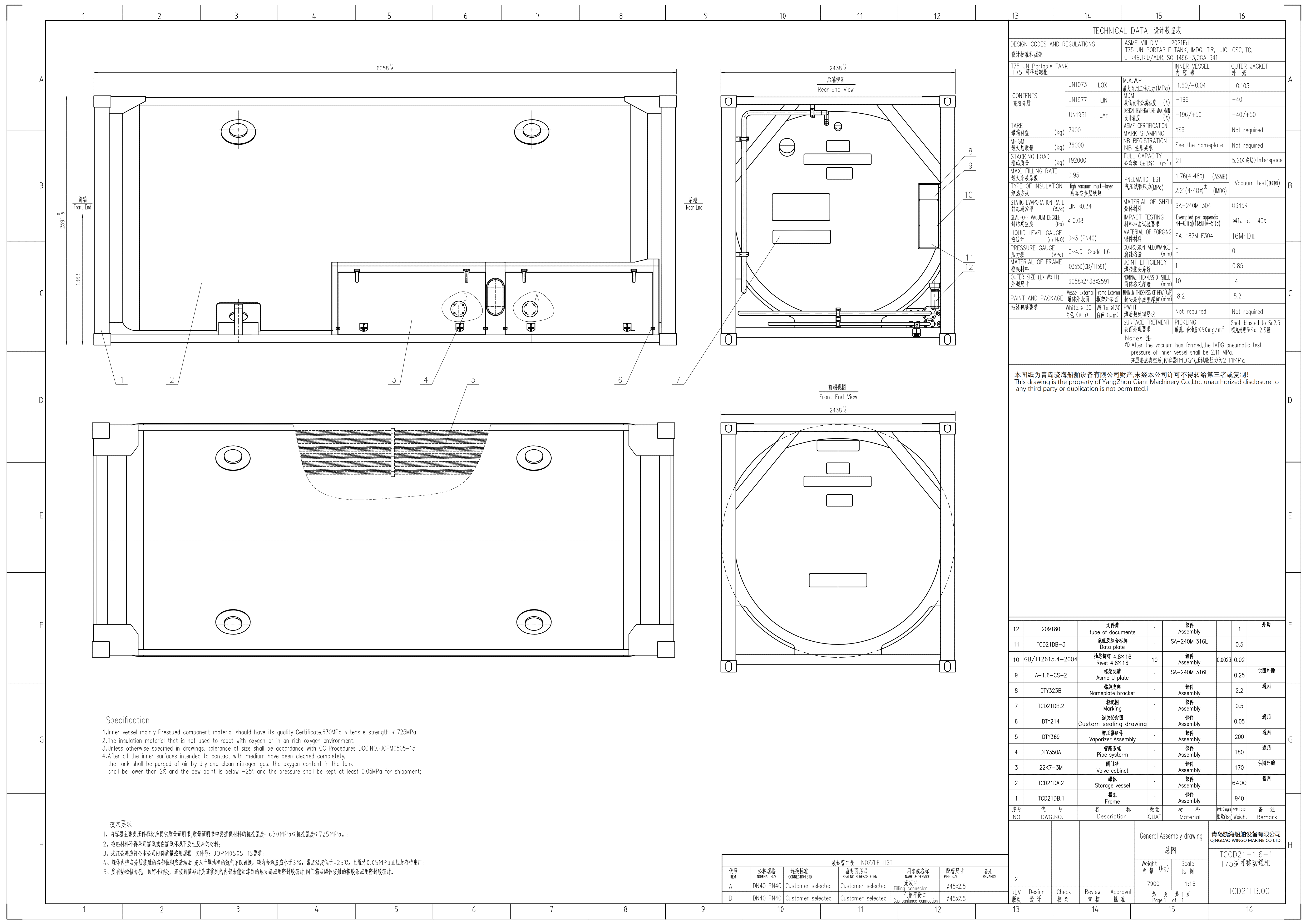

| ZBGX2017-01, 20Ft | LO2/LN/LAr/LNG | 20.5 | 95/90/81 | 1.1 | 7980 | 36000 | 6058*2438*2591 | ||

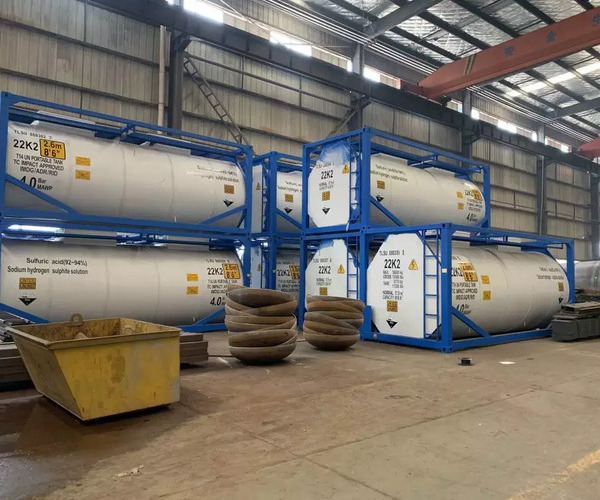

Self-owned Workshop
We own our workshops and save about $800,000 a year in rent. That would be a cost reduction of about $2,000 per unit.
Experienced Staffs
Most ngineers and workers are from the top cryogenic storage tank manufacturers, such as Charter, Hang Oxygen, Jiang Oxygen, CIMC, etc.
100% Inspection of Weld Seam
Each weld seam was inspected using X-rays, and the quality engineer confirmed no cracks, bubbles or impurities.
Third Party Detection
Third-party (CCS, ABS, BV, DNV, etc.) testing or testing by customer engineers is welcome.
One Stop Service
One-stop service covering the design, production and transportation of cryogenic tanks. Save your time and costs.
Digital Managment
The digital liquid level gauge replaces the traditional liquid level gauge and uses a SIM card to transmit the liquefied gas information to the mobile phone APP. One mobile phone can manage hundreds of cryogenic tanks. Super friendly to gas suppliers.
Supply Chain Advantages
We supply cryogenic tanks to the global market, including China, with an annual output of over 1,000 sets. Our vast production capacity enables us to purchase large quantities when steel prices are low and gives us a price advantage when purchasing valves and meters.
Free Certificates of Origin
We offer various certificates of origin for free and quickly. The correct certificates of origin can reduce import tariffs and make your business more competitive.

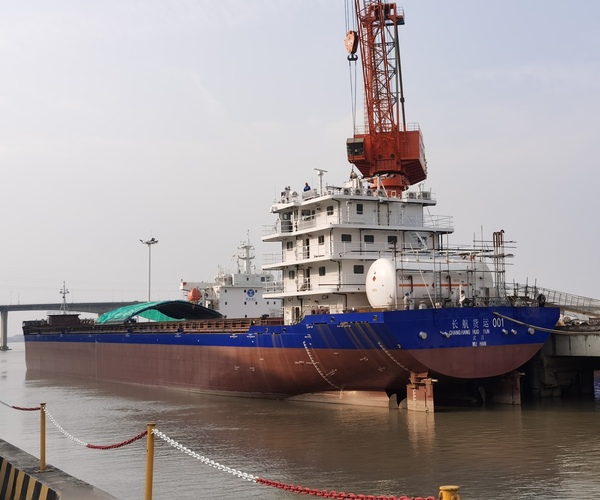

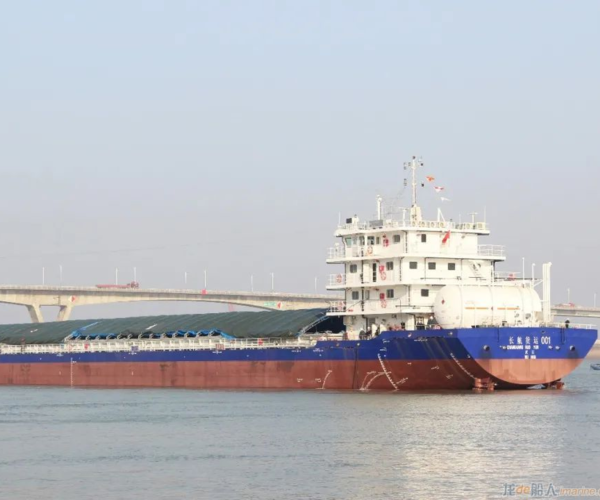

Projects
The warranty term is one year. The design life is twenty years.
We provide free technical guidance during the service life and the best price for the repair of spare parts.

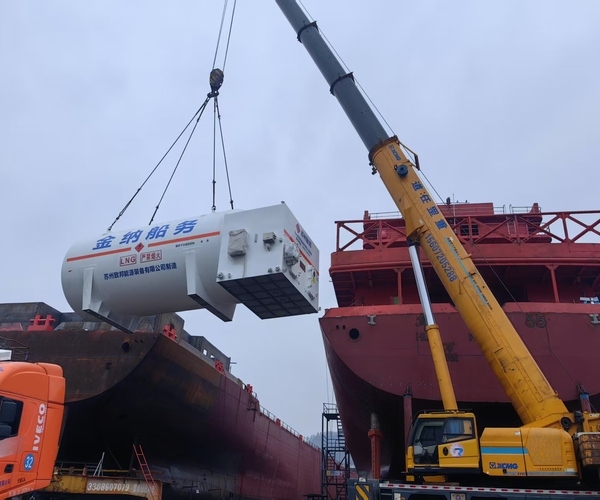

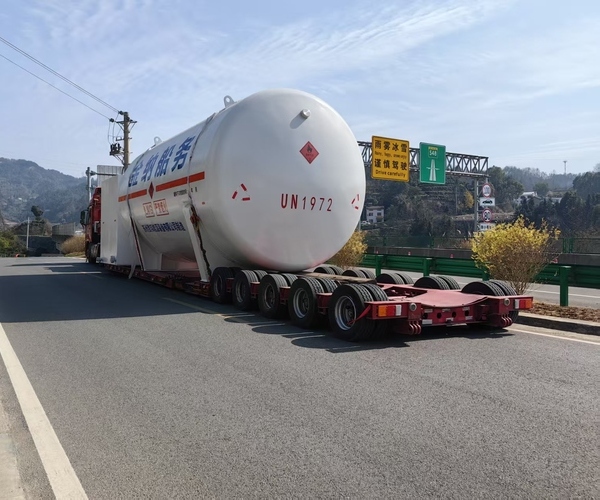

Depending on the size of the cryogenic tank, flat rack containers or open-top containers will be used.
We have professional loading workers, drivers, and freight forwarders who can provide one-stop service. Click to learn more.
Yes, we can apply for and provide free-of-charge certificates of origin issued by China Customs or the China Council for the Promotion of International Trade, including CO, FORM A/GSP, FORM E, FORM F, etc. Please click to learn more.
We support EXW, FOB, CIF, etc. Let us talk about your needs and make the most suitable price terms.
We support T/T, sight L/C, cash, West Union, Monygram, etc. Please click to learn more.
